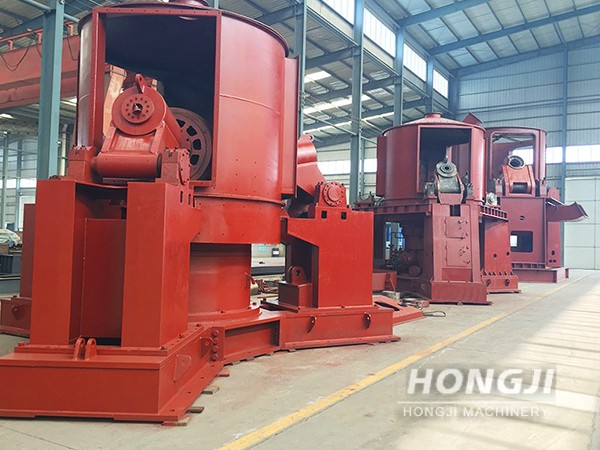

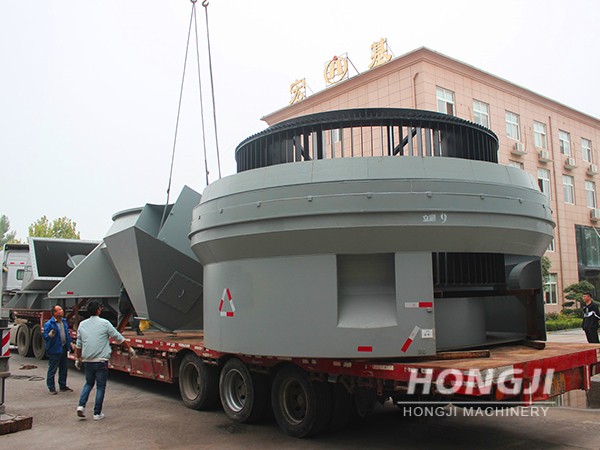

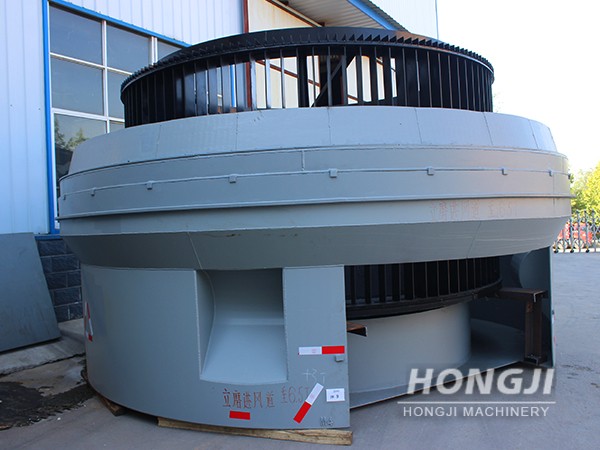

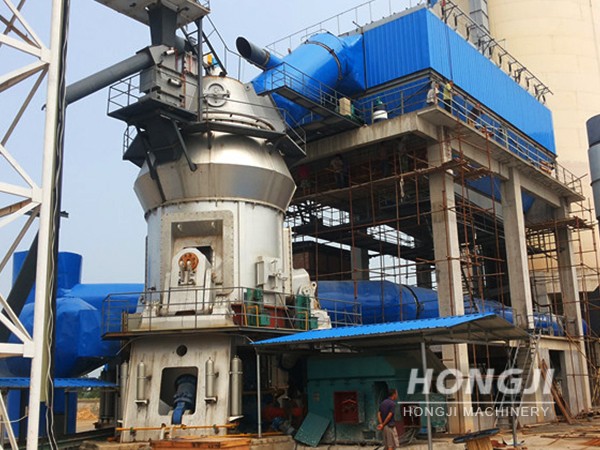

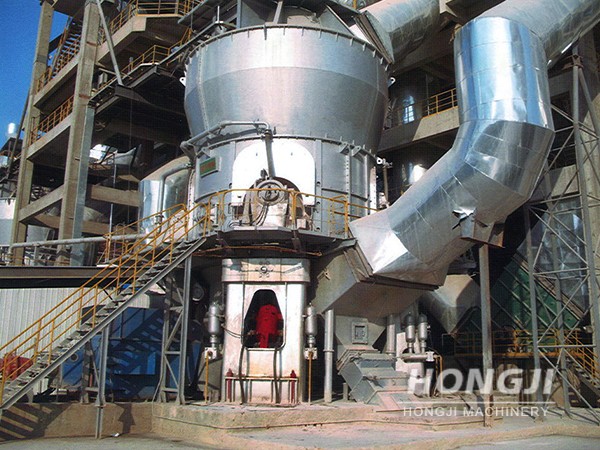

Vertical Mill

Product Introduction

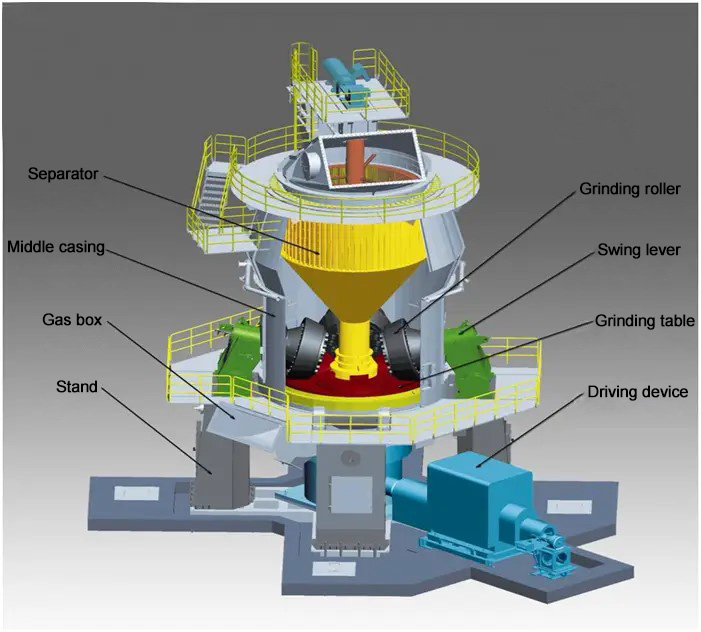

HJ Vertical mill is one kind of roller mill. As requested, it may equip with 3 or 4 rollers. Each roller is composed of fixed roller, support of installation rocker arm and hydraulic system. Motive force unit is in the whole or a standard part. It can be arranged in two components, three components or four components around mill disc.

Features

• low noise.
• Low energy consumption.
• Quick control response.
• The vibration is small from start to stop.
• Strong adaptability.
• Small covering area.
• Easy adjustment.
• Excellent dry grinding capacity.
• Easy maintenance (no need to dismantle and can replace easily worn-out parts).

Technical Parameter

Model	Grinding Table Diameter (mm)	Motor (kW)	Output (t/h)
RMS19	1900	560	15
RMS23	2300	710	20
RMS26	2600	1000	28
RMS30	3000	1400	40
RMS33	3300	1600	45
RMS36	3600	2000	60
RMS38	3800	2240	65
RMS40	4000	2500	75
RMS43	4300	3000	90
RMS46	4600	3150	95
RMS50	5000	4000	125
RMS53	5300	4500	145
RMS56	5600	5000	155
RMS60	6000	6300	180
RMS65	6500	7300	220
RMS70	7000	8500	260
