Product Introduction

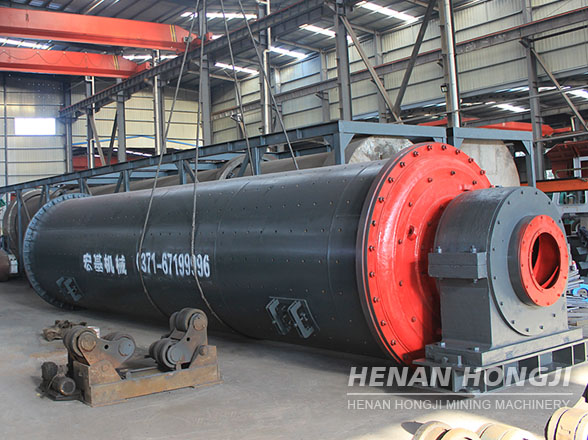

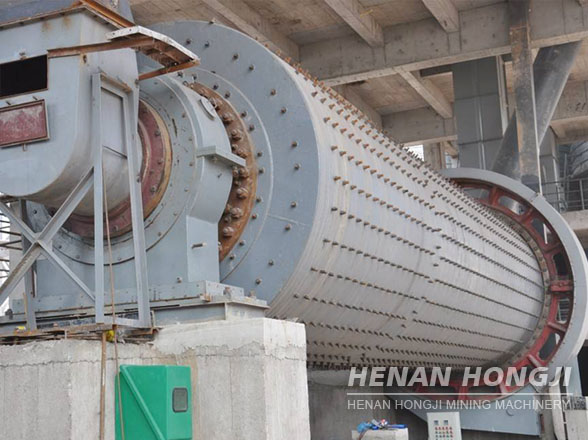

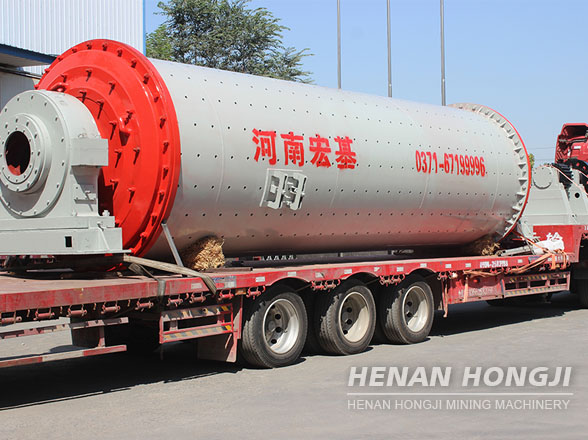

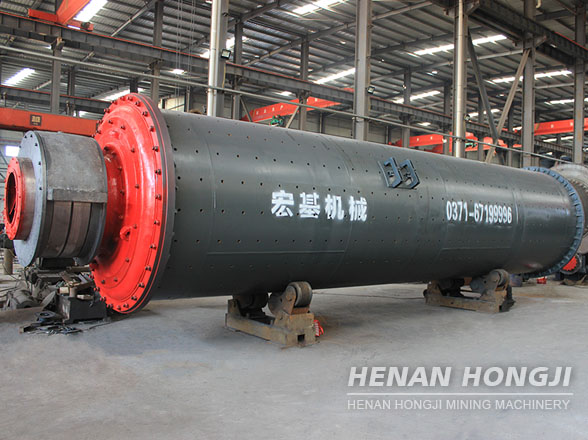

The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. Cement grinding is one of the important cement equipment. It plays a vital role in the cement production line and cement production process. Cement mills are mainly used in cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.
Applied materials
Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.
Features
- High grinding ratio.
- Large production capacity.
- Easy operation, stable& reliable performance.
- Smaller built-up space in comparison with mills seated on trunnion bearings.
- Wide applicability and Great yield.
- Oil mist lubrication device guarantees the lubrication of all gears.
Technical Parameter
| Product specification (m) | Speed reduction ratio | Motor power (kw) | Production capacity (t/h) | Total weight (t) |
| Φ1.83×7 | 4.5 | 245 | 6.5-8 | 43.8 |
| Φ2.2×7.5 | 5 | 380 | 8-10 | 64.8 |
| Φ2.2×11 | 35.5 | 630 | 12-13 | 104.6 |
| Φ2.2×13 | 35.5 | 630 | 16-18 | 114 |
| Φ2.4×13 | 35.5 | 800 | 20-23 | 130.6 |
| Φ2.6×13 | 19.5 | 1000 | 28-32 | 158 |
| Φ3×9 | 41.2 | 1000 | 28-36.5 | 167 |
| Φ3×11 | 42.8 | 1250 | 36-47 | 180 |
| Φ3.2×13 | 36.5 | 1600 | 45-50 | 225 |
| Φ3.5×13 | 5.84 | 2000 | 60-65 | 275 |
| Φ3.8×13 | 16.5 | 2500 | 60-62 | 320 |
| Φ4.2×13 | 15.6 | 3530 | 85-87 | 380 |
| Φ4.6×14 | 14.6 | 4200 | 120-135 | 485 |
