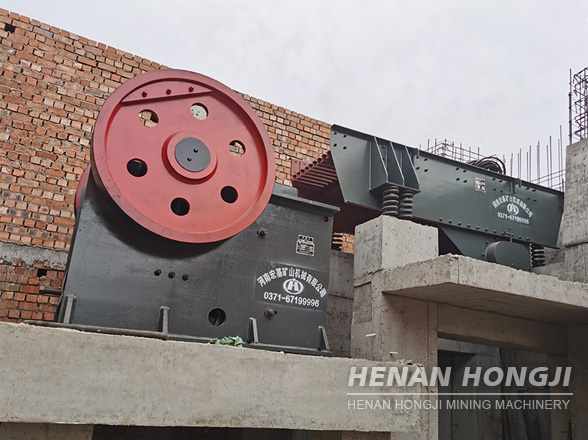

PE Jaw Crusher

Share To:

Product Introduction

Jaw crushers are mainly used as primary crushers. Their main purpose is to reduce rocks to smaller sizes for the next crushing stages. Jaw crushers are a popular alternative to primary gyratory crushers, since they can process large amounts of hard material efficiently. Due to their smaller physical size, which takes advantages of high efficiency, strong crushing ability and low investment costs. Jaw crushers are also ideal for tight spaces, such as underground mining and mobile crushing applications.

Applied material

Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Features

  • Adjustable Discharge Opening: The gap between the jaws can be adjusted to control the size of the crushed material. This allows for customization of the output size.
  • High Reduction Ratio: Jaw crushers are designed to provide a high reduction ratio, meaning they can crush large materials into smaller particles efficiently.
  • Strong and Durable Construction: Jaw crushers are built with a robust and sturdy design to handle heavy-duty applications and withstand the rigors of continuous operation.
  • Efficient Crushing Performance: The design of the crushing chamber and the kinematics of the movable jaw contribute to efficient crushing, resulting in high productivit
  • Energy Efficiency: Jaw crushers are designed to optimize energy consumption. Advanced technologies, such as hydraulic systems and flywheel inertia, contribute to reducing power usage.
  • Compact Design: Jaw crushers are available in various sizes and compact designs, making them suitable for both stationary and mobile applications. Their compact size allows for easy transportation and installation in different locations.

Technical Parameter

ModelMax.feeding size (mm)discharge opening (mm)capacity (t/h)Motor power (kw)Total weight (t)Dimensions(L×W×H)
PE-150×25012510-401-35.50.8720×660×850
PE-200×30018015-502-67.51.2910×750×990
PE-200×35018018-703-10111.51000×870×990
PE-250×40021020-605-21152.81300×1090×1270
PE-400×60034040-10016-643071730×1730×1630
PE-500×75042550-10040-11055121980×2080×1870
PE-600×750500150-20080-2405515.82070×2000×1920
PE-600×90050065-16050-16055172190×2206×2300
PE-750×106063080-140110-320110292660×2430×2800
PE-800×1060640130-190130-33011029.82710×2430×2800
PE-830×1060650160-220150-33611030.72740×2430×2800
PE-870×1060660200-260190-33611031.52810×2430×2800
PE-900×1060685230-290230-390110332870×2420×2940
PE-900×120075095-165220-380110523380×2870×3330
PE-1000×1200850195-265315-500110553480×2876×3330
PE-1200×15001020150-350400-800160-220100.94200×3300×3500
PE-1500×18001200220-350500-1000280-3551395160×3660×4248
PEX-150×75012018-488-25153.81200×1530×1060
PEX-250×75021025-6013-35225.51380×1750×1540
PEX-250×100021025-6016-523071560×1950×1390
PEX-250×120021025-6020-61379.72140×1660×1500
PEX-300×130025020-9016-1055515.62720×1950×1600
